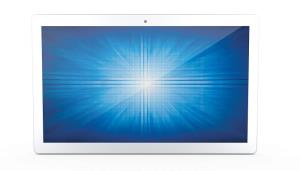

Esy22i1 Standard - 21.5in - Snapdragon Apq8053 - 3GB Ram - 32GB Flash - Pcap - Android 7.1 - White Mto

Introduction

The newly upgraded I-Series 2.0 for Android combines commercial-grade reliability with the powerful Qualcomm® SnapdragonT processor. Delivering 2x the performance of its predecessor, the I-Series brings it all together with an integrated TouchPro® PCAP 10-touch display, Android 7.1 (Nougat) and optional Power-over-Ethernet (POE) - all in a compact responsive all-in-one (AiO) computer. Available in white and black, the I-Series 2.0 AiO offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments.EloView, the secure platform for remote content deployment and device management, makes deploying and managing the I-Series easy. Since the I-Series and EloView are designed and tested by the same manufacturer, all the features are in sync and the devices set up automatically when connected. Whether you need to push new content to a device or simply need to change the screen brightness, EloView is ready.

I-Series for Everything
The Elo I-Series 2.0 offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Features to Match Your Needs
Does black or white match your design? All I-Series 2.0 models are offered in black (standard) or white (built-to-order). Do you need to connect peripherals to your device? How much memory and storage capacity do you need? Standard and Value models are offered in the 10-inch and 15-inch sizes, both providing the same performance and processor. What is the difference? The standard model offers more memory and storage, ports for peripheral mounting to the device, and a webcam.

Power over Ethernet
I-Series 2.0 doesn't need a power adapter to connect.

The new Power-over-Ethernet (POE) module is an optional accessory you can pair with all I-Series 2.0 Models. All you need is a POE capable network.

Where power drops can be expensive, running low voltage network cables allows for a lower cost solution. POE represents an easy to implement solution for shelf signage and AV applications like conference room schedulers or AV control displays.

EloView
A revolutionary interactive platform connecting hardware and software that is easy to use, quick to deploy and affordable. EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView delivers.

EloView is a software-as-a-service (SaaS) platform designed to simplify and automate the configuration and deployment of interactive displays across multiple locations. Use EloView to deliver your marketing content and create attractive, engaging, and educational public-facing interactive experiences.

Virtual GPS via EloView
Often, applications depend upon the GPS location of individual devices to understand what content to display. But GPS may not work indoors and can be expensive to add to a device that spends most of its life fixed to a specific location.

With EloView, you can set the location (latitude/ longitude) of the device remotely allowing the application to sync with the GPS coordinates and run localized content.

Built-to-Last
The I-Series AiO Touchscreen Signage displays deliver the quality and reliability Elo is known for and are backed by our 2-year standard warranty with an optional extension to 4-years. We design and build the complete solution, with touch integrated from the start.

Display

Display diagonal

54.6 cm (21.5")

Display resolution

1920 x 1080 pixels

Touchscreen

Y

Full HD

Y

HD type

Full HD

LED backlight

Y

Touch technology

Multi-touch

Native aspect ratio

16:9

Display brightness

250 cd/m²

Panel type

TFT

Response time

14 ms

Contrast ratio (typical)

1000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Multi-touch

Y

Screen shape

Flat

Display number of colours

16.78 million colours

Processor

Processor manufacturer

Qualcomm

Processor model

APQ8053

Processor family

Qualcomm Snapdragon

Processor frequency

2 GHz

Processor cores

8

Memory

Internal memory

3 GB

Internal memory type

DDR3L-SDRAM

Storage

Total storage capacity

32 GB

Storage media

SSD

Number of SSDs installed

1

SSD capacity

32 GB

Optical drive type

N

Card reader integrated

Y

Compatible memory cards

MicroSD (TransFlash)

Audio

Built-in speaker(s)

Y

Number of speakers

2

RMS rated power

4 W

Camera

Built-in camera

Y

Camera resolution

1920 x 1080 pixels

Camera HD type

Full HD

Network

Wi-Fi

Y

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Y

Bluetooth version

4.1

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Micro-USB ports quantity

4

Micro HDMI ports quantity

1

Design

Product colour

White

VESA mounting

Y

Panel mounting interface

100 x 100 mm

Performance

Product type

All-in-One tablet PC

Software

Operating system installed

Android 7.1

Power

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

Power consumption (typical)

16 W

Power consumption (standby)

4 W

Power consumption (off)

0.5 W

Pen

Pen included

N

Weight & dimensions

Width (without stand)

52.4 cm

Depth (without stand)

3.52 cm

Height (without stand)

32.4 cm

Weight (without stand)

4.3 kg

Package width

600 mm

Package depth

180 mm

Package height

400 mm

Package weight

7.3 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

5 - 95%

Packaging content

Mouse included

N

Quick start guide

Y

Cables included

AC

Other features

3D

N

Detachable display

Y
