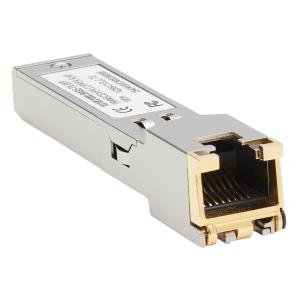

CISCO-COMPATIBLE GLC-TE SFP TRANSCEIVER - 10/100/1000BASE-TX

Introduction

SFP Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or Router
This SFP transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server or switch. It transmits data up to 328.08-ft. (100 m) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps.

Functionally Equivalent to Cisco GLC-TE Transceiver Module
The MSA-compliant N286-01GLC-TE functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-TE.

Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Premium Features for Superior Performance
The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver's zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Performance

SFP transceiver type

Copper

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

N

Multi-mode fiber (MMF) supported

N

SFP transceiver standard

TX

Maximum transfer distance

100 m

Ethernet LAN

Y

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-TX

Auto MDI/MDI-X

Y

Harmonized System (HS) code

8517.62.0090

Features

Product colour

Silver

Hot-swap

Y

Country of origin

China

Brand compatibility

Cisco

Operational conditions

Maximum operating temperature

70 °C

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 85%

Storage relative humidity (H-H)

5 - 85%

Weight & dimensions

Width

13.5 mm

Depth

68.1 mm

Height

8.4 mm

Weight

50 g

Packaging data

Number of products included

1 pc(s)

Package width

144.8 mm

Package depth

78.7 mm

Package height

17.8 mm

Package weight

50 g

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332248975

Logistics data

Master (outer) case width

185.4 mm

Master (outer) case length

149.9 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

580 g

Products per master (outer) case

10 pc(s)
