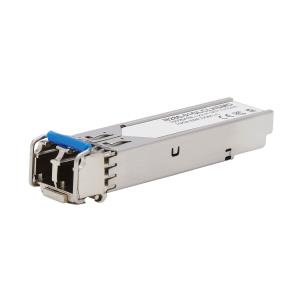

CISCO-COMPATIBLE GLC-LH-SMD SFP TRANSCEIVER - 10/100/1000BASE-LX

Introduction

SFP Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP transceiver allows you to connect an 9/125 singlemode fiber optic cable to a 10/100/1000 Mbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco GLC-LH-SMD Transceiver Module
The MSA-compliant N286-01GLCLHSMD functions just like the equivalent Cisco GLC-LH-SMD transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-LH-SMD.

Hot-Swappable for Installation Without Network Interruption
This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1000 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Y

Multi-mode fiber (MMF) supported

N

Fiber optic connector

LC

Fiber cable diameters supported (core/cladding)

8.3/125 µm

SFP transceiver standard

LH,LX

Maximum transfer distance

10000 m

Wavelength

1310 nm

Digital Diagnostics Monitoring (DDM)

Y

Harmonized System (HS) code

8517.62.0090

Features

Product colour

Silver

Hot-swap

Y

Country of origin

China

Brand compatibility

Cisco

Operational conditions

Maximum operating temperature

70 °C

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 85%

Storage relative humidity (H-H)

5 - 85%

Weight & dimensions

Width

13.2 mm

Depth

56.6 mm

Height

12.7 mm

Weight

150 g

Packaging data

Package width

114 mm

Package depth

45.2 mm

Package height

21.6 mm

Package weight

30 g

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332249286

Logistics data

Master (outer) case width

230.1 mm

Master (outer) case length

130 mm

Master (outer) case height

59.9 mm

Master (outer) case gross weight

430 g

Products per master (outer) case

10 pc(s)
