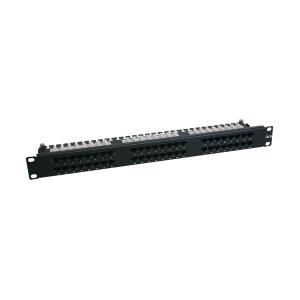

48-PORT 1U CAT6/CAT5 PATCH PANEL

Introduction

Tripp Lite's 1U, 48port, Cat6 High Density Patch panel frees up valuable rack real estate by condensing a typical 2U 48 port patch panel into 1U of space. The unique design allows for easy punch down termination. Simply unscrew 4 slotted thumbscrews to remove the "upper deck" punch down array. Punch down the "lower deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy Duty 14GA cold rolled steel construction. 110 connectors are color coded for either 568A or 568B wiring.

UTP Cat6 22-24 AWG solid cable

Space saving CAT6 Rated 48-port 1U 110 type Patch panel
Removable "upper-deck" for easy punch down termination
Built-in wire management loom
Color coded for 568A/568B wiring
Heavy Duty 14ga cold rolled steel construction
Mounts in standard 19" Racks or Cabinets

Network

Ports quantity

48

Connector(s)

RJ-45

Cable types supported

Cat6,Cat6a,Cat6e

Design

Product colour

Black

Mounting

Rack mounting

Rack capacity

1U

Certification

TAA, GSA

Weight & dimensions

Width

482.6 mm

Height

43.7 mm

Depth

84.1 mm

Weight

1.45 kg

Packaging data

Package width

495.3 mm

Package depth

94 mm

Package height

50.8 mm

Package weight

1.8 kg

Logistics data

Country of origin

Taiwan

Master (outer) case width

530.9 mm

Master (outer) case length

304.8 mm

Master (outer) case height

270 mm

Master (outer) case gross weight

19 kg

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332151732
