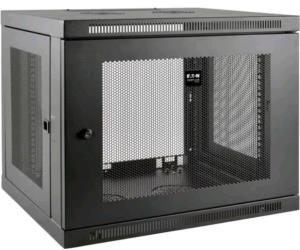

9U WALL MOUNT RACK ENCLOSURE

Introduction

The SRW9UDP SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

Specifications

Miscellaneous
Assembly Required	No
Technical Information
Application/Usage	Patch Panel
	LAN Switch
Features	Cable Management
General Information
Product Type	Rack Cabinet
Manufacturer Part Number	SRW9UDP
Product Model	SRW9UDP
Product Name	SmartRack 9U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
Product Line	SmartRack
Brand Name	Tripp Lite series
Physical Characteristics
Weight (Approximate)	23.50 kg
Form Factor	Wall Mountable
Rack Width	482.60 mm
Rack Height	9U
Height	505 mm
Width	600.2 mm
Depth	551.2 mm
Maximum Weight Capacity	90.72 kg
Rack Depth	520.70 mm
Product Color	Black
