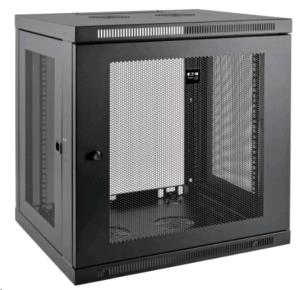

SMARTRACK 12U LOWPROFILE SWITCHDEPTHPLUS WALLMOUNT SMALL
£543.63
| Part Number: | SRW12UDP |
| Language: | UK |
Product Details
Introduction
The SRW12UDP SmartRack® 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).
To ensure your valuable equipment stays secure, the side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet toand keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.
The SRW12UDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as such as network switches and patch panels.
Technical details
Harmonized System (HS) code
8517.79.0000
Features
Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
Black
Material
Steel
Frame type
Closed
Key lock
Yes
Certification
EIA-310-E RoHS
Weight & dimensions
Size (imperial)
48.3 cm (19")
Width
599.9 mm
Depth
552.4 mm
Height
637 mm
Weight
25.9 kg
Packaging data
Wall mounting kit
Yes
Mounting kit
Yes
Manual
Y
Package width
730.2 mm
Package depth
674.9 mm
Package height
754.9 mm
Package weight
25.9 kg
Logistics data
Country of origin
China
Master (outer) case width
730.2 mm
Master (outer) case length
674.9 mm
Master (outer) case height
754.9 mm
Master (outer) case gross weight
25.9 kg
Products per master (outer) case
1 pc(s)
