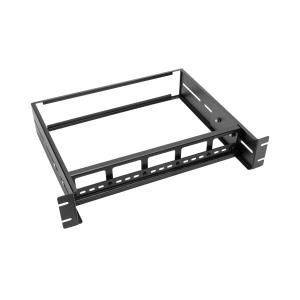

ADJUSTABLE RACK-MOUNT DIN RAIL KIT TOP HAT MINI TOP HAT G-STYLE

Introduction

DIN Rail-Mounting Kit Compatible with Wide Range of Equipment
This 2U rack-mount DIN kit includes top hat, mini top hat and G-style rails, making it compliant with an array of DIN rail equipment, such as power supplies, bell transformers, terminal strips, programmable time switches and circuit breakers. The adjustable rails can be easily set back to match DIN rail equipment of any depth.

Premium Construction Designed to Endure in Busy Rack Applications
The SRDINRAIL2U DIN rail-mounting kit is made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack décor. It mounts into 2U of space in an EIA-standard 19-inch open frame rack or floor-standing rack enclosure. Rack-mounting hardware is included for quick installation right from the box.

2-Year Warranty and Environmentally Responsible Design
The SRDINRAIL2U comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Features

Type

Adjustable shelf

Product colour

Black

Country of origin

China

Weight & dimensions

Width

482.6 mm

Depth

358.4 mm

Height

88.9 mm

Weight

1.8 kg

Packaging data

Quantity per pack

1 pc(s)

Package width

401.3 mm

Package depth

492.8 mm

Package height

106.7 mm

Package weight

2.68 kg

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332213263

Logistics data

Master (outer) case width

556.3 mm

Master (outer) case length

518.2 mm

Master (outer) case height

424.2 mm

Master (outer) case gross weight

14.8 kg

Products per master (outer) case

5 pc(s)

Harmonized System (HS) code

7326.90.8688
