10GB DUPLEX MULTIMODE 50/125 OM3 LSZH FIBER PATCH CABLE (SC/S

10GB DUPLEX MULTIMODE 50/125 OM3 LSZH FIBER PATCH CABLE (SC/S

£14.77
£17.72
Part Number: N806-15M
Language: UK
Real time Stock Check

Product Details

Introduction

Tripp Lite introduces it's new OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications. These new technology, 50/125um, SC/SC Fiber Optic cables, provide nearly four times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.

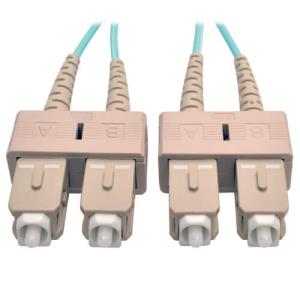

15 Meter ( 50ft ) SC/SC 10Gig, OM3 rated
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant

Features

Cable length

15 m

Connector 1

2x SC

Connector 2

2x SC

Connector 1 gender

Male

Connector 2 gender

Male

Fibre optic type

OM3

Product colour

Beige, Turquoise

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

100 Gbit/s

Jacket material

Low smoke zero halogen (LSZH)

Country of origin

China

Harmonized System (HS) code

8544.70.0000

Technical details

Sustainability certificates

RoHS

Master (outer) case GTIN (EAN/UPC)

10037332124828

Packaging data

Package width

154.9 mm

Package depth

132.1 mm

Package height

2.5 mm

Package weight

90 g

Logistics data

Master (outer) case width

154.9 mm

Master (outer) case length

190.5 mm

Master (outer) case height

152.4 mm

Master (outer) case gross weight

1.36 kg

Products per master (outer) case

10 pc(s)
