Powerscan Pd9531 Auto Range Kit

Introduction

PowerScan 95X1 Auto Range Series

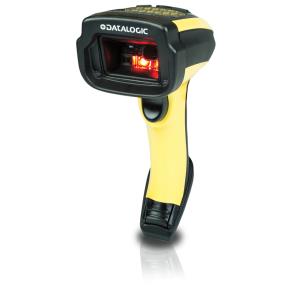

Datalogic is introducing the new PowerScan 95X1 Auto Range (AR) Series, the top performing industrial hand held scanner with extra-long range scanning capabilities on 1D/2D barcodes. This addition further expands the PowerScan 9000 family offering by including the Auto Range 2D imaging models. The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances. The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic's STAR Cordless System 2.0 proprietary radio (PM9501-AR) or Bluetooth 3.1 wireless technology (PBT9501-AR). The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user's environment.

Scanning

Type

Handheld bar code reader

Scanner type

1D/2D

Sensor type

LED

Linear (1D) barcodes supported

Code 128, GS1 DataBar Omnidirectional, JAN, Planet, POSTNET, RM4SCC / KIX

2D (matrix & stacked) barcodes supported

Aztec Code, Code 39, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code

Working distance

20 m

Tilt reading angle

-90 - 90°

Pitch reading angle

-40 - 40°

Yaw reading angle

-30 - 30°

Ports & interfaces

Connectivity technology

Wired

Standard interfaces

RS-232

Performance

International Protection (IP) code

IP65

Protection features

Shock resistant

Buzzer

Y

Product colour

Black, Yellow

Power

Power source type

DC

Input voltage

4.5 - 30 V

Power consumption

500 mA

Weight & dimensions

Width

110 mm

Depth

74 mm

Height

212 mm

Weight

400 g

Packaging data

Cables included

RS-232

Operational conditions

Operating temperature (T-T)

-20 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Technical details

Sustainability certificates

RoHS
