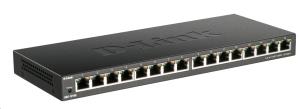

Ethernet Switch Dgs-1016sb 16-port 10/100/1000mbps Unmanaged Gigabit

Introduction

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.1p, IEEE 802.3az, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

1000BASE-T

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

Cable length detection

Yes

Data transmission

Switching capacity

32 Gbit/s

MAC address table

8000 entries

Store-and-forward

Yes

Number of queues

8

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1488000 pps

Packet forwarding rate (100 Mbps)

148800 pps

Packet forwarding rate (10 Mbps)

14880 pps

Packet buffer memory

0.512 MB

Design

Product colour

Black

LED indicators

Activity, Link, Power, Speed

Safety

LVD

Performance

Plug and Play

Yes

Fanless

Yes

Mean time between failures (MTBF)

564658 h

Power

DC input voltage

12 V

Input current

1 A

Power consumption (max)

8.89 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Heat dissipation

30.32 BTU/h

Weight & dimensions

Width

280 mm

Depth

110 mm

Height

25 mm

Weight

770 g

Certificates

Certification

CE, FCC, ICES 003, RCM

Logistics data

Harmonized System (HS) code

85176990
