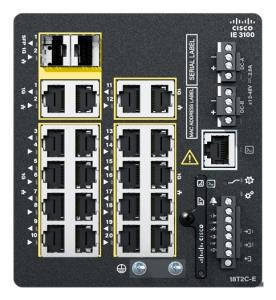

Ie3100 W/18ge Copper 2ge Combo Fixed Sys Cc Ne

Introduction

Fast, secure network connectivity, even in tight spaces?

Extend fast, secure, and fully managed connectivity to devices in harsh operating conditions and space-constrained environments.

Easily place in confined spaces. Integrate within connected industrial solutions that are custom-built and turnkey.?

Incorporate within turnkey industrial solutions?
Deliver fully managed, secure, and reliable custom-built machinery by connecting individual devices within your industrial solution.

Join the circular economy
Invest in products that are designed, built, and delivered with sustainability in mind. The Catalyst IE3100 Rugged Series eliminates the use of paint with anodization and uses 100% recyclable packaging.

??Bring the best of IT networking into your operations
Gain enterprise-grade networking capabilities with the modern Cisco IOS-XE operating software, management by Cisco DNA Center, and fast recovery for resilient operations.

??Protect your operations with best-in-class security?
??Reduce risk and defend your operations against cyberthreats with device authentication, access control, and network segmentation.?

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

18

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

2

Console port

RS-232/Micro-USB

Compatible memory cards

SD

Power connector

DC-in jack

Network

Networking standards

IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z

10G support

No

Link aggregation

Yes

Spanning tree protocol

Yes

IPv4 routes

2000

VLAN support

Yes

Number of VLANs

256

Data transmission

MAC address table

8000 entries

Number of queues

8

Security

DHCP features

DHCP server, DHCP snooping

IGMP snooping

Yes

Multicast features

Multicast support

Yes

Number of multicast groups filtered

512

Design

Rack mounting

Yes

Stackable

No

Product colour

Black

DIN rail mounting

Yes

Performance

Memory type

DRAM

Internal memory

4000 MB

Mean time between failures (MTBF)

642050 h

Power

Power source

DC

Power supply included

Yes

Input current

4.2 - 1.3 A

Input voltage

12 - 48 V

Power consumption (typical)

36.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Other features

Warranty period

5 year(s)

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Operating altitude

0 - 4572 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width

109.2 mm

Depth

129 mm

Height

127 mm

Weight

1.27 kg

Sustainability

Sustainability compliance

Yes

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), ICES, KCC
