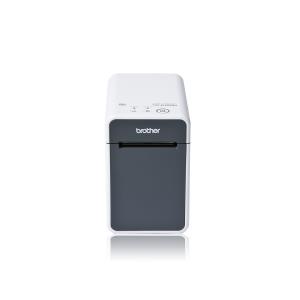

Td-2125nwb - Label Printer - Direct Thermal - 63mm - Rs232c / USB / Ethernet / Wifi / Bluetooth

Introduction

Versatile, compact desktop label printer with a built-in network, wireless and bluetooth connectivity. Print professional quality custom labels, wristbands and receipts at 152mm/sec.

A compact machine with the speed, features and media capacity of a desktop printer, the TD-2125NWB allows you to print professional quality custom labels, wristbands or receipts at 203dpi, wherever you are in the workplace. The built-in network, WiFi and bluetooth connectivity provides the flexibility to print wirelessly, or by using the available apps on your smartphone or tablet.

Printing from your existing systems is simple thanks to our range of software developer kits and easy integration.

The flexible TD-2125NWB can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.

TD-2125NWB Professional Bluetooth, Wireless Desktop Label Printer

Designed for use on any retail, medical or other workspace, the TD-2125NWB is among the most compact and fastest 56mm wide powered desktop thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second. Also prints tags and receipts for kiosk and POS applications. The wide range of connectivity options, including USB, WiFi and Bluetooth, make the TD-2125NWB a truly versatile solution. Print where you want, without the need for unnecessary cables, or setup and configure with a smartphone or tablet using the available apps.

An innovative drop-in roll with a spindle-less design helps make loading easy with various sized media. Windows Server® 2012/2012R2/2016/2019/2022 and Windows® 8.1/10/11 drivers, (ZPL II® compatibility,) and SDK's for iOS® and Android® helps with integration into existing retail solutions.

Printing

Print technology

Direct thermal

Colour

No

Maximum resolution

203 x 203 DPI

Print speed

152.4 mm/sec

Maximum printing width

5.6 cm

Maximum print length

1 m

Paper handling

Maximum label width

6.3 cm

Maximum roll diameter

12.7 cm

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)

Bluetooth

Yes

Bluetooth version

5.2

Bluetooth profiles

HCRP, OPP, SSP

USB port

Yes

USB 2.0 ports quantity

1

RS-232 ports

1

Performance

Page description languages

CPCL-native, ESC P

Internal memory

256 MB

Flash memory

64 MB

Built-in barcodes

CODABAR (NW-7), Code 39, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, ITF, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E

Security algorithms

64-bit WEP, 128-bit WEP, EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, SNMPv3, SSL/TLS, WPA-PSK, WPA2-PSK, WPA3-EAP

Design

Product colour

Black, White

Built-in display

No

Power

External power adapter

Yes

System requirements

Windows operating systems supported

Windows 10, Windows 11, Windows 8, Windows 8.1

Server operating systems supported

Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Mobile operating systems supported

Android 10, Android 10.0, Android 11.0, Android 12.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3

Weight & dimensions

Width

110 mm

Depth

215 mm

Height

172 mm

Weight

1.34 kg

Packaging content

Cables included

USB

Quick start guide

Yes

AC adapter included

Yes

Manual

Yes

Other features

Networking features

10/100BASE-TX

Languages support

Multi

Number of languages

11
