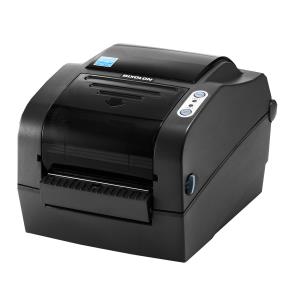

Label Printer Slp-tx420d Dt/ Tt 203dpi Ser/par/USB Bluetooth Grey

Introduction

Compact desktop printer for 74 m ribbon
Label printer for Android mobile devices
Wireless shipping label printer
Wristband printer
1D and 2D Barcode printer

Flexible to Use
- Compatible with Android-based smart devices
- Triple interface supported: USB + Serial + Parallel
- Optional Ethernet and WLAN supported (USB dongle type)

Outstanding Form Factor
- Fast printing speed up to 7 ips (178 mm/sec)
- Quick data processing through powerful memory
- Compact design for 74m ribbon
- Energy-efficient product

Intelligent Function
Smart Media Detection™ is Bixolon’s world-class technology that detects label length and media types such as gap media, black mark media, and short length media paper. Intelligent Leap-over™ detects empty label and automatically leaps to the next label.

Premium-level Compatibility
Fully compatible with market-leading programming languages

User-friendly Design
- Various type of media sensor supported
- Easy paper loading with adjustable paper guide
- Simple to change ribbon, thermal print head, and roller

Label Artist™
Bixolon provides its custom label design program as bundle. It supports database connection as well as text, drawing lines and boxes, all kinds of graphics and 1D/2D Barcode printing.

Printing

Print technology

Direct thermal / Thermal transfer

Colour

No

Maximum resolution

203 x 203 DPI

Print speed

178 mm/sec

Printing colours

Black

Maximum printing width

10.8 cm

Minimum print length

6 mm

Paper handling

Ribbon length

74 m

Maximum roll diameter

13 cm

Media thickness

0.06 - 0.2 mm

Supported paper width

20 - 110 mm

Ports & interfaces

Connectivity technology

Wired & Wireless

Ethernet LAN

No

Wi-Fi

No

Bluetooth

Yes

USB port

Yes

USB 2.0 ports quantity

1

Parallel ports quantity

1

RS-232 ports

1

Performance

Page description languages

BPL

Internal memory

64 MB

Flash memory

128 MB

Built-in barcodes

1D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, GS1 DataBar, IMB, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E

Design

Product colour

Black, Grey

Built-in display

No

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

System requirements

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Linux operating systems supported

Yes

Operational conditions

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

200 mm

Depth

252 mm

Height

173 mm

Weight

2.35 kg

Packaging content

Drivers included

Yes

AC adapter included

Yes

Manual

Yes

Logistics data

Harmonized System (HS) code

84433210

Technical details

Sustainability certificates

ENERGY STAR

Other features

LED indicators

Yes
