T93c10 Outdoor Housing

Introduction

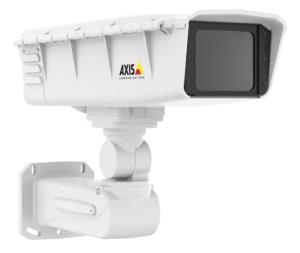

AXIS T93C10 Outdoor Housing is optimized for Axis network cameras using EF/EF-S-lenses. The housing is built to help maintain optimal conditions for sensitive components, operating between -40 °C and 50°C (-40 °F and 122 °F). AXIS T93C10 protects against the ingress of dust and water, and features two sealed cable ports.

The non-metallic housing is impact-resistant and will not corrode, rust, or oxidize. AXIS T93C10 can be installed on walls using the included heavy-duty wall mount or on poles together with the optional AXIS T93C Wall-and-Pole Conduit Back Box.

- Active cooling and heating
- Protection against impact, water, dust, UV and corrosion
- Included wall mount
- Optimized for Axis network cameras using EF/EF-S lenses
- Optional pole mounting accessory

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 100%

Weight & dimensions

Exterior dimensions (WxDxH)

190 x 530 x 140 mm

Interior dimensions (W x D x H)

130 x 300 x 95 mm

Material

Material

Polymer

Colour

Product colour

White

Technical details

Compatibility

P13 Series Q16 Series

International Protection (IP) code

IP66
