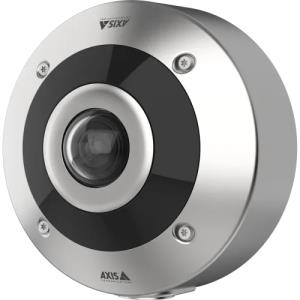

Panoramic Camera - M4337-splve 6mp Fisheye With 360 View

Introduction

Certified for use in food processing facilities, this fisheye camera comes in a marine-grade stainless steel 316L (EN1.4404) casing. AI-powered, it includes camera-side dewarped views for improved usability, coverage, and accuracy.

Built for corrosive areas
Enclosed in an electropolished, marine-grade stainless steel 316L (EN1.4404) casing, this robust camera withstands corrosive environments as well as hygienic wash-downs. It’s certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. This compact, easy to install camera offers complete 180° or 360° coverage with no blind spots. What’s more, it’s both vandal- and impact-resistant and has a wide operating temperature range.

Leverage powerful AI analytics
This AI-based camera includes a deep learning processing unit (DLPU) to run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. Plus, AI models are specifically trained for 360° fisheye views to ensure optimized performance. With AXIS Image Health Analytics you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. What's more, generated metadata can be gathered and visualized in a dashboard for valuable insights, and it’s optimized for free text search with AXIS Camera Station Smart search.

Capture sharp images with great details
Using advanced sensor technology, AXIS M4337-SPLVE offers 30% higher resolution than previous generations, reaching up to 2464×2464 pixels. Stereographic lens and Sharpdome 360 deliver outstanding image sharpness towards the edges and excellent corner image quality. Day/night functionality and built-in IR illumination ensure clear, reflection-free footage and excellent images even in low light or complete darkness. With Axis Lightfinder and Forensic WDR, it delivers true colors and great details in challenging light. It supports up to four digital PTZ views, as well as dewarped views. Furthermore, Axis Zipstream with AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements.

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Design

Mounting type

Ceiling/wall

Product colour

Stainless steel

International Protection (IP) code

IP66, IP67, IP68, IP69K

IK code

IK10

Camera

Minimum illumination

0.08 lx

Lens viewing angle, horizontal

185°

Lens viewing angle, vertical

185°

Image sensor

Optical sensor size

25.4 / 1.6 mm (1 / 1.6")

Sensor type

CMOS

Lens system

Number of lenses

1

Fixed focal length

1.7 mm

Night vision

Night vision

Yes

Video

Maximum resolution

2464 x 2464 pixels

Total megapixels

6 MP

Video compression formats

H.264, H.265

Frame rate

60 fps

Network

Ethernet LAN

Yes

Wi-Fi

No

Bluetooth

No

Storage

Built-in HDD

No

Card reader integrated

Yes

Power

Power source type

PoE

Operational conditions

Operating temperature (T-T)

-40 - 50 °C

Packaging content

Number of cameras

1
