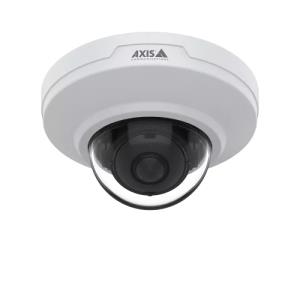

M3086-v Mic Dome Camera

Introduction

This compact dome camera delivers great image quality in 4 MP. It supports advanced analytics based on deep learning on the edge. Plus, the variant AXIS M3086-V Mic features a built-in microphone so it's out-of-the-box-ready for AXIS Audio Analytics.

Great forensic usability
AXIS M3086-V offers great 4 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there’s both dark and light areas in the scene. And, with Lightfinder, you get sharp, color images even in low light. Furthermore, it offers a wide-angle view of 130° and comes factory-focused so there’s no manual focusing required.

Extended possibilities
AXIS M3086-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. This compact dome offers the flexibility to add audio or I/O connectivity using accessories. Furthermore, AXIS M3086-V Mic is available with a built-in microphone, so it’s out-of-the-box-ready for AXIS Audio Analytics.

Compact and cost-efficient
This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. Axis Zipstream with H.264/H.265 ensures reduced bandwidth and storage requirements. And thanks to edge storage, you can record directly to an onboard memory card. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.

Performance

Type

IP security camera

Placement supported

Indoor

Connectivity technology

Wired

Day/night mode

Yes

Design

Form factor

Bullet

Mounting type

Ceiling

Product colour

White

Camera

Minimum illumination

0.03 lx

Lens viewing angle, horizontal

130°

Lens viewing angle, vertical

93°

Image sensor

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Lens system

Number of lenses

1

Focal length range

2.4 mm

Video

Maximum resolution

2688 x 1512 pixels

Total megapixels

4 MP

Video formats supported

H.264, H.265, M-JPEG

Audio

Built-in microphone

Yes

Ports & interfaces

Microphone in

Yes

Power

Power source type

PoE

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Packaging content

Number of cameras

1
