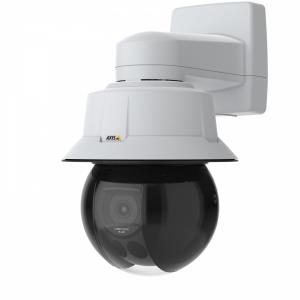

Q6318-le 50hz Ptz Network Camera No Midspan

Introduction

AXIS Q6318-LE offers superior 4K UHD resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With a built-in laser, 31x optical zoom, you can easily follow fast-moving objects and quick-zoom makes it move from wide to tele view in just 1 second. This high-speed PTZ camera includes orientation aid and autotracking 2 with click and track functionality. AXIS Object Analytics lets you detect and classify humans and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that’s FIPS 140-2 level 2 certified.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

PTZ control

Yes

Auto-tracking

Yes

Tour recording

Yes

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Processor model

ARTPEC-7

Built-in processor

Yes

Number of languages

19

Languages support

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese

Certification

EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835

Design

Mounting type

Wall

Product colour

White

Housing material

Aluminium, Polycarbonate (PC)

International Protection (IP) code

IP66, IP67

IK code

IK10

Camera

Camera pan control

Yes

Camera tilt control

Yes

Minimum illumination

0.11 lx

Lens viewing angle, horizontal

58.5°

Lens viewing angle, vertical

34.9°

Tilt angle range

-90 - 20°

Tilt speed

500 °/sec

Pan speed

550 °/sec

Camera shutter speed

1/8500 - 1/5 s

Image sensor

Optical sensor size

25.4 / 2 mm (1 / 2")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Zoom capability

Yes

Optical zoom

31x

Digital zoom

12x

Focal length range

6.91 - 214.64 mm

Auto focus

Yes

Maximum aperture number

4.6

Minimum aperture number

1.36

Night vision

Night vision

Yes

Night vision distance

200 m

LED type

IR

Infra-red wavelength

850 nm

Video

Maximum resolution

3840 x 2160 pixels

Video compression formats

H.264, H.265, M-JPEG

Video recording

Yes

Frame rate

25 fps

Video streaming

Yes

Privacy masking

Yes

Network

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Networking standards

IEEE 802.1x, IEEE 802.3bt

Supported network protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Wi-Fi

No

Bluetooth

No

Quality of Service (QoS) support

Yes

Storage

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

SD, SDHC, SDXC

Flash memory

512 MB

Internal memory

2048 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Security

Password protection

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Digest authentication

Yes

Network access storage (NAS)

Yes

Power

Power source type

PoE

AC input voltage

100 - 240 V

Power consumption (typical)

17 W

Power consumption (max)

51 W

Operational conditions

Operating temperature (T-T)

-50 - 50 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 100%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

261 mm

Diameter

23.9 cm

Weight

4.8 kg

Packaging content

Number of cameras

1

Manual

Yes

Packaging content

Windows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper
