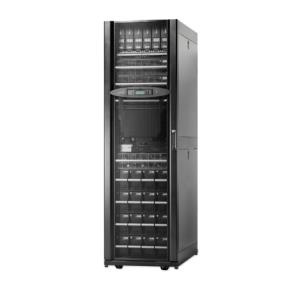

Symmetra Px 48kw All-in-one Frame 400v
£22,973.57
| Part Number: | SYCF48KH |
| Language: | NS |
Product Details
Introduction
Hot-scalable power, runtime & distribution in a high-density single frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. Suitable for small & medium data center applications.
Includes: Network Management Card, Start-Up Service.
Features
UPS topology
Double-conversion (Online)
Output power capacity
48 kVA
Output power
48000 W
Waveform
Sine
Input operation voltage (max)
400 V
Input frequency
40/70 Hz
Output operation voltage (min)
230 V
Output operation voltage (max)
400 V
Output frequency
50/60 Hz
Maximum current
98 A
Number of input phases
3
Number of output phases
3
Three-phase input voltage supported
380,400,415 V
Three-phase output voltage supported
380,400,415 V
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
61 dB
Output power capacity
48 kVA
Output power
48000 W
Emergency Power Off (EPO)
Y
Noise level
61 dB
Audible alarm(s)
Y
Ports & interfaces
Serial interface
Yes
Serial interface type
RS-232
Serial ports quantity
2
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
13824 VAh
Number of batteries supported
4
Battery recharge time
3 h
Hot-swap battery
Yes
Battery recharge time
3 h
Design
Form factor
Tower
Product colour
Black, Grey
Product colour
Black
Certification
EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 999.9 m
Non-operating altitude
0 - 15000 m
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 999.9 m
Non-operating altitude
0 - 15000 m
Certificates
Certification
EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111
Weight & dimensions
Width
600 mm
Depth
1070 mm
Height
1991 mm
Weight
796 kg
Weight
796 kg
Package weight
858 kg
Logistics data
Harmonized System (HS) code
85078000
Total carbon footprint (kg of CO2e)
1004.35
Other features
Battery type
VRLA
Interface
2x SmartSlot
Output connections
1x Hard Wire 5-wire (3PH + N + G)
Dimensions (WxDxH)
600 x 1070 x 1991 mm
Output voltage note
380, 400/415
Package dimensions (WxDxH)
848 x 1210 x 2140 mm
