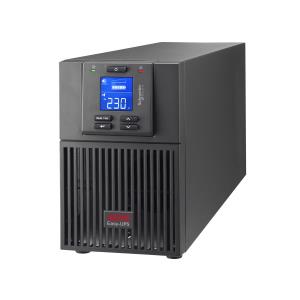

Easy UPS On-Line, 1000VA/900W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD

Introduction

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

Features

UPS topology

Double-conversion (Online)

Output power capacity

3 kVA

Output power

2700 W

Waveform

Sine

Input operation voltage (min)

110 V

Input operation voltage (max)

285 V

Input frequency

40 - 70 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Output voltage regulation

3%

Efficiency

88%

Crest factor

3:1

Output voltage Total Harmonic Distortion (THD)

3%

Noise level

50 dB

Surge protection

Yes

Audible alarm(s)

Yes

Audible alarm modes

Low battery alarm, Overload alarm

Power source type

AC

Detachable power cord

Yes

Ports & interfaces

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

7 AC outlet(s)

USB port

Yes

USB 2.0 ports quantity

1

USB port type

USB Type-B

Serial interface

Yes

RS-232 ports

1

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery voltage

72 V

Battery life (max)

3 year(s)

Battery recharge time

4 h

Design

Form factor

Mini Tower

Cable length

1.5 m

Product colour

Black

Display type

LCD

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Certificates

Certification

CE UKCA TISI

Packaging content

Rack mount kit

No

Cables included

Input power cable, Output power cable, RS-232, USB cable

Manual

Yes

Weight & dimensions

Width

190 mm

Depth

425 mm

Height

336 mm

Weight

26 kg

Packaging data

Package width

565 mm

Package depth

325 mm

Package height

465 mm

Package weight

28 kg
