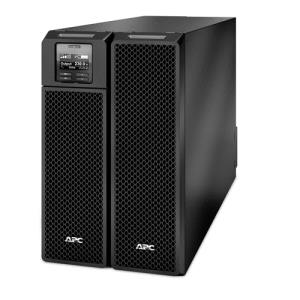

Smart-UPS SRT 10000va 230v

Introduction

APC Smart-UPS On-Line,10 kW /10 kVA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model

Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card

Technical details

Total carbon footprint (kg of CO2e)

22851.99

Compliance certificates

RoHS

Harmonized System (HS) code

85078000

Sustainability certificates

RoHS, ENERGY STAR

Ports & interfaces

SmartConnect port

No

AC outlet types

C13 coupler, C19 coupler

Power plug

Terminal

AC outlets quantity

10 AC outlet(s)

Number of output IEC jumpers

3

USB port

Y

Serial interface

Y

Serial interface type

RJ-45

SmartSlot

Y

Packaging content

Management card included

Yes

Features

UPS topology

Double-conversion (Online)

Output power capacity

10 kVA

Output power

10000 W

Waveform

Sine

Input operation voltage (min)

100 V

Input operation voltage (max)

476 V

Input frequency

40/70 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Output frequency regulation

50/60 Hz

Surge energy rating

480 J

Number of output phases

1

Efficiency

94.6%

Crest factor

3:1

Emergency Power Off (EPO)

Y

Noise level

55 dB

Audible alarm(s)

Y

Auto-restart

Y

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

1805 VAh

Typical backup time at full load

3.8 min

Typical backup time at half load

11.5 min

Battery life (max)

5 year(s)

Battery recharge time

1.5 h

Hot-swap battery

Y

Automatic battery test

Y

Cold start

Y

Design

Form factor

Rackmount/Tower

Product colour

Black

LED indicators

Y

International Protection (IP) code

IP20

Certification

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Weight & dimensions

Width

263 mm

Depth

715 mm

Height

432 mm

Weight

111.8 kg

Package width

600 mm

Package depth

1000 mm

Package height

461 mm

Package weight

126.8 kg

Packaging data

Cables included

USB cable

Temperature sensor

Y

Quick installation guide

Y

Warranty card

Y

Software CD

Y

Other features

Interface

RJ-45 10/100 Base-T

Nominal output voltage

230 V

Nominal input voltage

230 V

Packaging content

Web/SNMP Management Card
