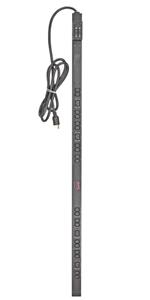

Rack Pdu Basic Zero U 30a 208v 20 C13 And 4 C19

Introduction

-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Design

PDU types

Basic

Type

Single-phase

Rack capacity

0U

Mounting

Vertical

Product colour

Black

Product colour

Black

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

Power plug

NEMA L6-30P

AC outlet types

NEMA L6-30P

Input connection type

NEMA L6-30P

Output connections

(20) IEC 320 C13 (4) IEC 320 C19

Input connection type

NEMA L6-30P

Output connections

(20) IEC 320 C13 (4) IEC 320 C19

Features

Cable length

3 m

Cable length

3.05 m

Certification

cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL

Weight & dimensions

Width

56 mm

Depth

44 mm

Height

1619 mm

Width

56 mm

Depth

44 mm

Height

1619 mm

Weight

5.57 kg

Dimensions (WxDxH)

56 x 44 x 1619 mm

Weight

5.57 kg

Power

Nominal input voltage

200; 208; 230 V

AC input frequency

50-60 Hz

Maximum current

30 A

Output voltage

200 V; 208 V

Load capacity

4992 VA

Maximum input current per phase

30 A

Maximum total current draw per phase

24 A

Nominal input voltage

208 V

AC input frequency

50 - 60 Hz

Load capacity

4992 VA

Maximum input current per phase

30 A

Maximum total current draw per phase

24 A

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance

Yes

Compliance certificates

RoHS, REACH, WEEE

Certification

cUL,CSA C22.2 No. 60950-1-03,METI Denan,UL 60950-1,UL

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15240 m

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Logistics data

Total carbon footprint (kg of CO2e)

137.47

Country of origin

India

Customs product code (TARIC)

8544429090

Total carbon footprint (kg of CO2e)

3936.6696350091

Packaging content

Cables included

Power

Packaging data

Package weight

6.48 kg

Package width

127 mm

Package depth

152 mm

Package height

2121 mm

Technical details

Sustainable packaging

No

Packaging recycled materials

Recycled cardboard

Halogen free

No

Preferred mounting position

no preference

Take-back system

No

Packaging without single use plastic

No
