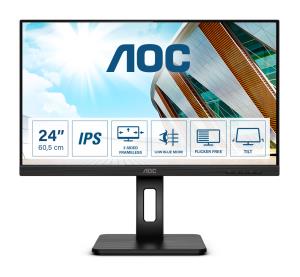

Desktop Monitor - Q24P2Q - 24in -2560x1440 (QHD) - IPS 4ms

Introduction

Stunning picture quality and productivity-boosting features in a 23.8” QHD display
The Q24P2Q offers professionals a wide array of convenient features to help them get the most out of every work day. Equipped with a flat 23.8” IPS/3FL panel with QHD resolution, it features a slim, 3-sided frameless design with wide viewing angles of 178°/178°. Tiltable, swivelable, and height-adjustable, it includes a USB 3.2 hub and provides ergonomic comfort as well as eye-friendly features such as Low Blue Mode and Flicker-Free technology.

Monitor Type

TV / Monitor

Monitor

Model Specifications

Model

Q24P2Q

Display Type

LCD

Screen Size

24"

Cabinet Colour

Black

Backlighting Technology

LED

Display

Screen Technology

IPS

Display Area

526.848(H) X 296.352(V) mm mm

Pixel Pitch

0.2058

Response Time

4 ms

Viewing Angle

178/178 º

LED backlight

Yes

Response time measurement type

GTG (Gray to Gray)

DCI-P3 coverage

90%

Touchscreen

No

Digital horizontal frequency

30 - 114 kHz

NTSC coverage (typical)

80%

Anti-glare screen

Yes

Display diagonal (metric)

60.452 cm

Display diagonal

60.5 cm (23.8")

Display brightness (typical)

250 cd/m²

Display resolution

2560 x 1440 pixels

Native aspect ratio

16:9

Response time

4 ms

HD type

Quad HD

Display technology

LED

Backlight type

W-LED

Display surface

Matt

Screen shape

Flat

Supported graphics resolutions

2560 x 1440

Supported video modes

1440p

Contrast ratio (typical)

1000:1

Contrast ratio (dynamic)

50000000:1

Maximum refresh rate

75 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Panel type

IPS

Pixel pitch

0.2058 x 0.2058 mm

Pixel density

123 ppi

Horizontal scan range

30 - 114 kHz

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

Surface hardness

3H

Colour depth

8 bit

Display scanning frequency

VGA/HDMI 1.4/DP 1.2: 30 - 114 KHz (H), VGA/HDMI 1.4/DP 1.2: 48 - 75 Hz (V)

RGB colour space

sRGB

sRGB coverage (typical)

116%

Adobe RGB coverage

86%

Connectivity

Display Port

1 x DisplayPort 1.2

HDMI

1 x HDMI 1.4

USB

4 x USB 3.2 (Gen1)

VGA

1 x VGA


Aspect Ratio

16:9

Contrast Ratio

Dynamic : 50M:1
Static : 1000:1

Colours

16.7 Million

Maximum Resolution

2560 x 1440

Multimedia

Multimedia Capability

Yes

Audio In/Out

1 x Headphone out (3,5mm)

Speakers

2 x Speakers

RMS rated power

2 W

Built-in microphone

No

Built-in speaker(s)

Yes

Number of speakers

2

Built-in camera

No

Power

Power Consumption

On : 24 watt
Off : 0.3 watt
Standy : 0.3 watt

Energy efficiency class (HDR)

F

Power supply type

Internal

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

18 kWh

Power consumption (typical)

24 W

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

External power adapter

No

Energy efficiency scale

A to G

Dimensions

Height

513 mm (20.20 inches)

Width

540.2 mm (21.27 inches)

Depth

200.1 mm (7.88 inches)

Weight

4.74 kg (10.45 lb)

Ergonomics

Height adjustment

150mm

Supported Mounting

100 x 100 mm

Swivel angle range

180 °

Tilt angle

-5~35°

Swivelling

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Panel mounting interface

100 x 100 mm

VESA mounting

Yes

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

0 - 180°

Swivel angle range

-180 - 180°

Tiltable

Yes

Tilt angle range

-5 - 35°

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

16

Green Certificates

Energy Star Certified

Yes

Green Compliant

Yes

TCO

TCO 8

Ports & interfaces

HDCP

Yes

HDCP version

1.4

Built-in USB hub

Yes

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity

4

VGA (D-Sub) ports quantity

1

DVI port

No

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort version

1.2

Audio input

Yes

Headphone out

Yes

Headphone connectivity

3.5 mm

Microphone in

Yes

Weight & dimensions

Weight (without stand)

3.44 kg

Depth (without stand)

50.7 mm

Height (without stand)

326.4 mm

Width (with stand)

540.2 mm

Depth (with stand)

200.1 mm

Height (with stand)

513 mm

Weight (with stand)

5.14 kg

Width (without stand)

540.2 mm

Other features

Warranty period

3 year(s)

Bezel thickness type

Frameless

Compliance certificates

CE

Package weight

6860 kg

Light effects

No

Power cable length

1.8 m

Exterior finish type

Textured

Recyclable packaging material

100%

Performance

Fast charging

Yes

Low Blue Light technology

Yes

Compatibility

VESA-P2

NVIDIA G-SYNC

No

AMD FreeSync

Yes

AMD FreeSync refresh rate range

48 - 75 Hz

Flicker-free technology

Yes

Sustainability

European Product Registry for Energy Labelling (EPREL) code

405262

Sustainability certificates

EPEAT Silver

Doesn't contain

PVC/BFR

Packaging data

Package width

610 mm

Package depth

160 mm

Package height

525 mm

Stand included

Yes

Cables included

Audio (3.5mm), DVI, DisplayPort, HDMI, VGA

Audio cable length

1.8 m

DisplayPort cable length

1.8 m

DVI cable length

1.8 m

HDMI cable length

1.8 m

VGA cable length

1.8 m

Package weight

6.86 kg

Package type

Box

Design

Market positioning

Business

Product colour

Black

Frameless design

Yes

Front bezel colour

Black

Detachable stand

Yes

Feet colour

Black

Heavy metals free

Hg (mercury)

Certification

True

Logistics data

Harmonized System (HS) code

85285210

Recycling data

Post-consumer recycled plastic

85%
